How to use Type 2 charging at home, work and on the road

Type 2 has quietly become the standard connector for AC charging across most of Europe and many other regions. If you drive an electric car there, you are very likely dealing with Type 2 at home, at work and at public chargers.

Understanding how Type 2 works, what affects charging speed and how to choose the right cable makes charging simpler and helps you avoid common mistakes.

What Type 2 actually is

Type 2 is the physical plug shape and socket used for AC charging. It looks like a round connector with a flat top and seven holes. Most European EVs and plug-in hybrids have a Type 2 inlet on the car.

Many rapid DC chargers also use a modified version of Type 2 as part of the CCS2 connector. For AC charging though, you only use the round Type 2 part, either with a cable attached to the charger or your own separate cable.

Where you will meet Type 2 in real use

At home, wallboxes typically have a Type 2 socket or a fixed Type 2 cable. At work, most company chargers are also Type 2, usually with a socket where you plug in your own lead. In public locations like supermarkets or hotels, slower AC posts are almost always Type 2.

DC rapid chargers often have a separate, thick CCS cable attached. You do not need your Type 2 cable for those. For AC posts though, having a reliable Type 2 cable in your boot gives you far more options.

How much power you can actually get from Type 2

The headline numbers for Type 2 can be confusing. In theory, Type 2 supports up to 22 kW on three-phase AC, and in some cases 43 kW. In practice, your charging rate is limited by the weakest part of the chain.

That chain includes the charger, the wiring it is connected to, your car’s onboard AC charger and any limits set by the property owner or grid operator. Many EVs only accept 7.4 kW on single phase, some accept 11 kW or 22 kW on three-phase, and many plug-in hybrids are limited to 3.7 kW or even less.

Single-phase vs three-phase at home and work

In some countries most homes have single-phase supply, which limits Type 2 to around 7.4 kW for cars that support it. In others, three-phase is common, which allows 11 kW or 22 kW from suitable wallboxes and wiring.

You cannot turn a single-phase supply into three-phase with a simple setting. If you want faster AC charging at home or at work, discuss with a qualified electrician what is feasible and compliant with local rules.

Choosing the right Type 2 cable

Many cars do not come with a public AC cable by default or include one that is shorter than ideal. When buying a Type 2 cable, you need to consider length, power rating and quality.

A length of 5 to 7 metres suits most situations. Too short and you may not reach some charge points, too long and the cable becomes heavy and awkward. For most users, a 32 A three-phase cable is a good all-round choice, even if your current car only charges on single phase.

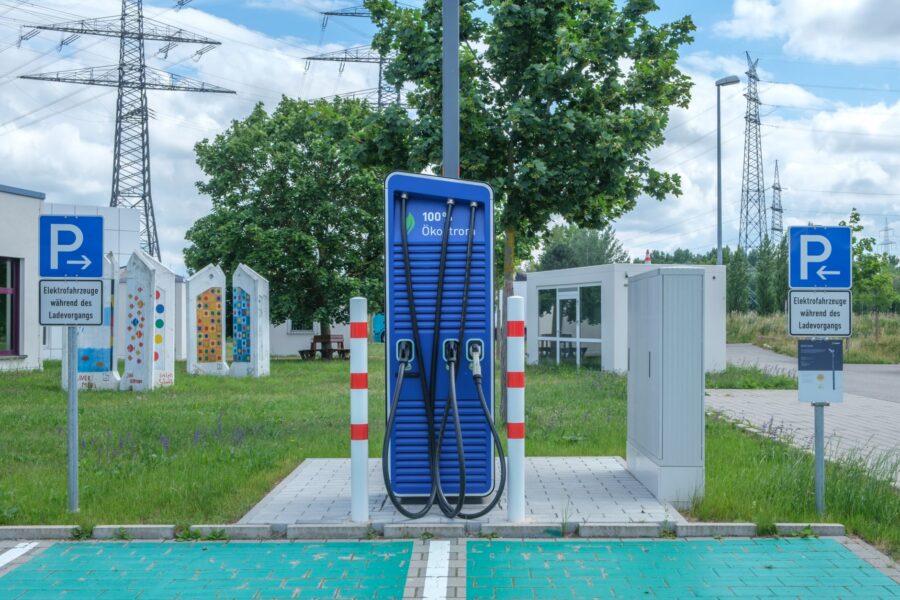

Using Type 2 at public AC chargers

At a public AC post with a Type 2 socket, you typically: connect the cable to the charger, connect the other end to your car, start the session via an RFID card, app or payment terminal, then unplug in reverse order when finished.

Check the posted maximum power of the charge point, then compare that with your car’s AC limit. If you have a car that only charges at 7.4 kW on AC, there is no benefit in hunting for a 22 kW AC post, your car will still take around 7 kW.

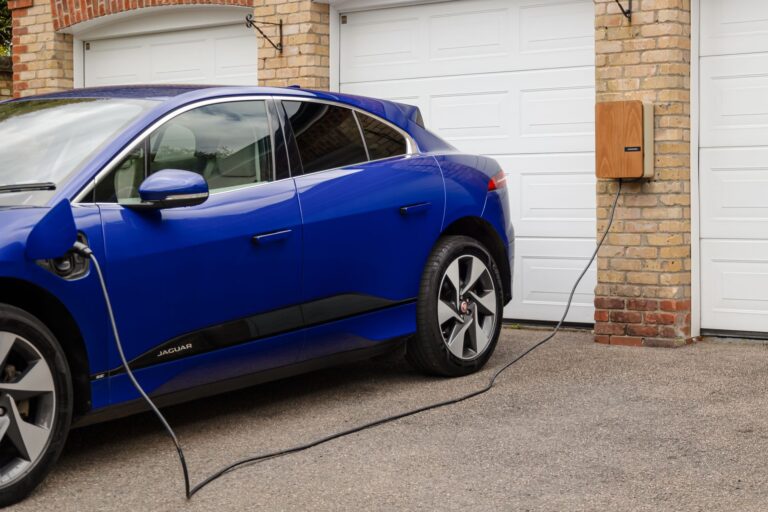

Type 2 at home: practical habits

If your home charger has a fixed Type 2 cable, treat it like a fuel hose. Coil it gently when not in use, keep the connector off the ground if possible and avoid closing garage doors on it. In wet weather, keep the connector out of puddles when unplugged.

If your wallbox has a socket, you can leave your cable plugged in and looped on a hook. This is convenient, but if theft or vandalism is a concern, store the cable in your car instead when it is not in use.

Safe handling and care of the connector

Type 2 connectors are designed to resist rain and splashes while plugged in. You can charge in the rain without needing covers or tape. What you should avoid is forcing the plug if it feels misaligned or obstructed.

Inspect your cable occasionally for damage to the insulation, bent pins or cracked housings. If anything looks suspect, stop using it and have it checked or replaced. A damaged connector can lead to poor contact, heat build-up and unreliable charging.

When your car does not have Type 2

Some older or region-specific models may use a different AC inlet. In those cases, a Type 2 cable alone will not solve compatibility. Adaptors might exist, but not all are approved by manufacturers or allowed by local rules.

Before buying any adaptors, check your car’s manual and, if needed, ask your dealer or an experienced installer. Relying on unofficial solutions can void warranties or bypass important safety features.

Planning around Type 2 for longer trips

Even if you mainly rely on rapid DC chargers on longer journeys, Type 2 can be very useful overnight. Hotels, guest houses and some public car parks provide AC posts where you charge while you sleep or stay.

When planning a trip, look for destinations with AC Type 2 options and pack your cable. A slower but steady top-up while you are parked can reduce pressure on finding DC chargers the next day and makes the whole trip more relaxed.

Key takeaways for new EV owners

If you remember a few points about Type 2, life with an EV becomes much simpler. Know your car’s maximum AC rate, carry a suitable Type 2 cable, and understand that the real charging speed depends on both the charger and your vehicle.

Combine that knowledge with professional installation at home and a bit of planning at work and on the road, and Type 2 becomes a flexible, predictable part of how you keep your EV ready to go.
