Understanding onboard chargers in EVs and how they affect your daily driving

Most people focus on public fast plugs when they look at battery-powered cars, but the part that matters most day to day is often hidden behind a plastic flap: the onboard charger. This box of electronics quietly decides how quickly your car can refill its battery from an ordinary AC socket or home wallbox.

Knowing the basics of onboard chargers helps you plan home upgrades, choose the right cable and avoid disappointment when a car does not refill as fast as the wallbox sticker suggests. You do not need engineering knowledge, just a few core ideas.

What an onboard charger actually does

Electricity from most homes and many car parks is AC (alternating current), while EV batteries store DC (direct current). The onboard charger lives inside the car and converts that AC into DC at a controlled rate that the battery can safely accept.

Public high-power stations work differently, because the conversion hardware is outside the car. In that case the station delivers DC directly to the battery, so the onboard charger is bypassed and its power rating does not matter.

Why the onboard charger’s kW rating matters

Onboard chargers are rated in kilowatts, often 7 kW, 11 kW or 22 kW in many markets. That number is the upper limit for AC power that the car can use, even if the wallbox is capable of more.

A simple way to estimate refill time is: battery size in kWh divided by AC power in kW. A 60 kWh pack with a 7 kW onboard charger will take roughly 8 to 9 hours from low to nearly full on AC, once you factor in some losses and slower speeds near a high state of charge.

Single-phase versus three-phase AC

In some regions homes commonly use single-phase supply, in others three-phase is widely available. Many EVs support higher AC rates only when three phases are present, so real speeds can depend on local wiring as much as on the car itself.

For example, a car with an 11 kW onboard charger might still be limited to about 7 kW at a single-phase home. The brochure number assumes three-phase power that may only be available at workplaces or purpose-built parking facilities.

How cables and sockets affect AC power

Even when the onboard charger supports high power, your cable and socket must also be rated for it. Many portable cables that plug into a standard household outlet are limited to around 2 to 3 kW for safety and to protect the wiring.

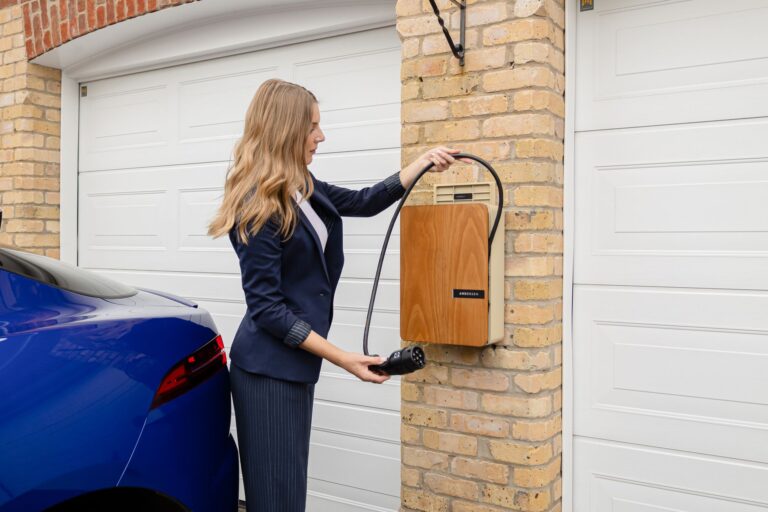

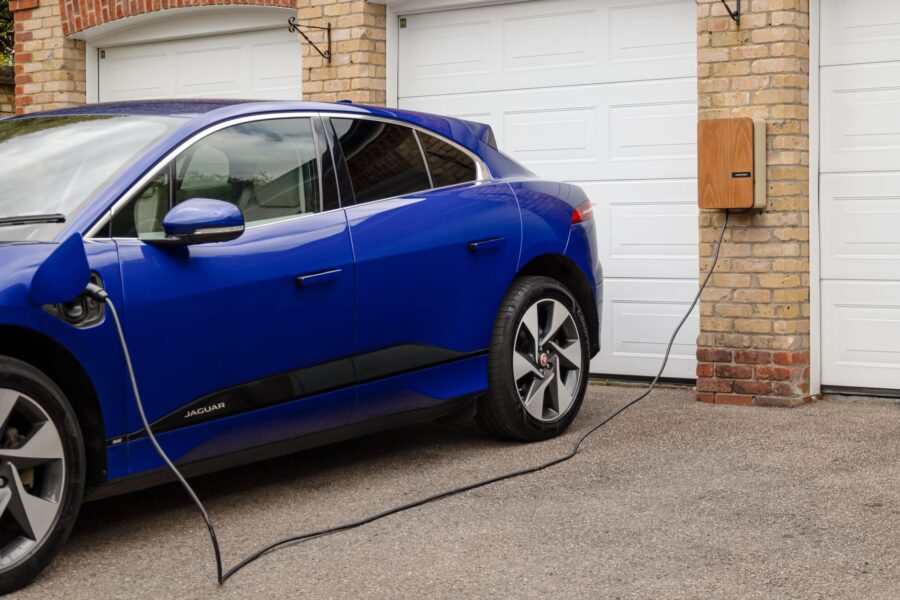

To use higher AC speeds, you typically need a dedicated wallbox on its own circuit. The car, wallbox and cable communicate and choose the highest rate that all three can support safely, so the weakest link always sets the limit.

Onboard chargers and battery health

AC refilling through the onboard charger is often gentler on the battery than frequent high-power DC sessions. The power levels are lower, heat is easier to manage and the battery management system has more time to balance individual cells.

For many owners, using AC as the everyday method and keeping DC for trips is a reasonable way to reduce stress on the pack. Exact effects on battery life depend on the chemistry and thermal management of each model, but this pattern is widely recommended by manufacturers and advisors.

Choosing between 7 kW, 11 kW and 22 kW

When comparing cars or optional equipment, it can be tempting to pick the biggest onboard charger available. In practice, the right choice depends on your daily distance, parking habits and local wiring limits.

If your car spends most nights parked for 8 hours or more, 7 kW often covers even fairly long daily commutes. Higher onboard charger ratings start to matter more if you arrive home with a low battery and need a large refill in just a few hours.

Practical examples for everyday use

Imagine a 50 kWh car with a 7 kW onboard charger that you park at home from 7 p.m. to 7 a.m. Even at 6 kW effective power it can comfortably refill from 20 percent to 90 percent overnight, which suits many people who drive 50 to 100 km per day.

By contrast, if you share the car in a busy household or use it for a daily long-distance commute, upgrading to a model with an 11 kW or higher onboard charger can reduce waiting times on days when you need two large refills.

Software, updates and smart energy use

Many recent EVs let you schedule AC sessions, limit the maximum current and coordinate with variable electricity tariffs. The onboard charger then adjusts its draw automatically within the limits set by you and the installer.

Some models also receive software updates that refine how the onboard charger interacts with the grid, home batteries or solar panels. While these updates do not change the hardware limit in kW, they can improve efficiency, reliability and features over time.

Key questions to ask before installing a wallbox

Before booking hardware for your parking spot, it is worth asking a few direct questions so you do not overpay for capacity your car cannot use or overlook useful features.

• What is my car’s maximum AC onboard charger rating in kW and phases
• Is my home supply single-phase or three-phase, and what upgrade options exist
• How many hours per day is the car usually parked at my main spot
• Do I plan to add another EV or plug-in hybrid in the next few years

Bringing these answers to an electrician helps them specify a setup that matches both your car and home, instead of focusing only on the biggest kW number on the wallbox brochure.

Onboard chargers as a long-term planning factor

The onboard charger is usually fixed for the life of the car, unlike a wallbox that you can replace or upgrade. When choosing an EV, think about how your household might change in the next five to ten years, including job patterns and additional vehicles.

A good match between onboard charger, home wiring and daily routines can turn refilling into a background task rather than a constant concern. Once that is in place, you can focus on trip planning, in-car tech and all the other aspects that make battery-powered transport appealing.
