Understanding DC fast charging speeds and how they affect your real-world range

Public DC fast chargers can feel both impressive and confusing. The display shows kilowatts flying by, your dashboard shows kilometers or miles of range, and the numbers rarely behave the way you expect.

Knowing how these high-power sessions really work makes it easier to plan longer journeys, protect your battery and avoid frustration at the plug.

What DC fast charging actually does

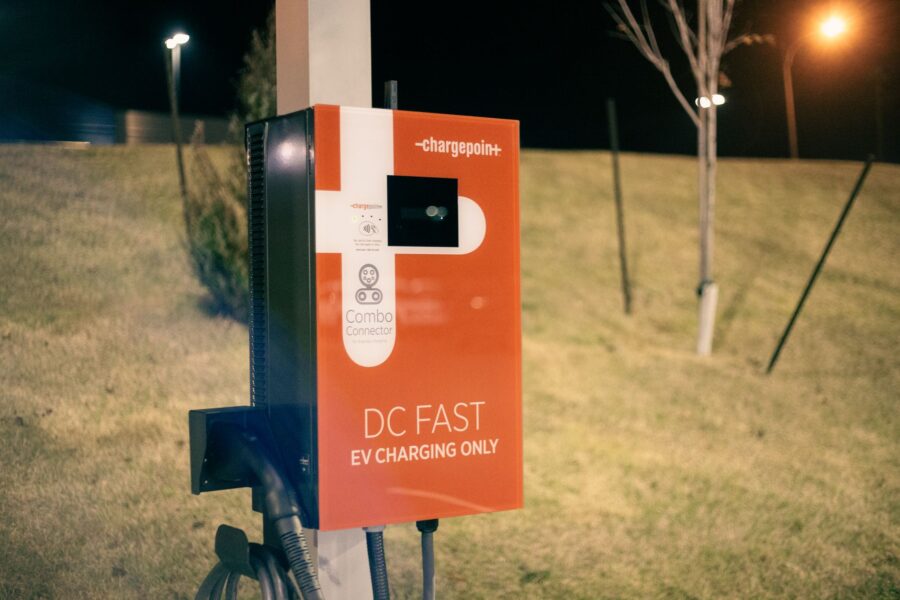

DC fast charging sends direct current straight into the battery at high power, usually from around 50 kW up to 350 kW on the newest sites. This bypasses the car’s onboard AC charger, so you are limited mainly by the car’s battery and the charger’s capability.

In simple terms, kilowatts (kW) describe how quickly energy is flowing, while kilowatt-hours (kWh) describe how much energy went in. Your usable range comes from the kWh stored in the battery, not from the peak kW number you briefly see on the screen.

Why the fastest speed is only part of the story

Many drivers focus on the highest kW their car can accept, for example 100 kW or 150 kW. In reality, you only see that maximum rate for a short period of time under ideal conditions. The more useful figure is how long it takes to go from one battery level to another, such as 20 to 60.

This is called the charging curve. At lower battery levels, the car usually accepts power quickly. As the battery fills, the car slows the rate to protect the cells. Two cars that both peak at 150 kW can feel very different at the plug because their charging curves are not the same.

Key factors that affect DC charging speed

Several real-world factors decide how quickly energy flows into your battery during a session. Understanding them helps you predict what will happen at a particular stop instead of relying on the headline number in the brochure.

Some are under your control, while others depend on the charging site or the weather.

Battery temperature

Batteries prefer a moderate temperature when taking in energy quickly. If the pack is very cold or very hot, the car will slow the rate to prevent damage. This is why winter sessions can feel sluggish, especially if you drive only a short distance before plugging in.

Many models offer battery preconditioning, which gently warms or cools the pack before you arrive at a fast charger. If your car has this feature, using it on longer trips can significantly reduce charging time.

State of charge when you arrive

DC fast charging is usually quickest between low and medium battery levels. Starting a session around 10 to 30 allows the car to accept power at or near its peak. Above roughly 60 to 70, most cars gradually reduce the rate.

This is why many route planners suggest shorter, more frequent stops instead of one long session to a very high battery level. Stopping earlier keeps you in the faster part of the charging curve.

Charger power and shared units

Charging sites are rated by maximum output, for example 150 kW or 300 kW, but not every stall has its own dedicated power. Some units share power between two connectors, which means your rate can drop if another car arrives and plugs into the paired outlet.

Station signage or the charging app sometimes explains which posts share power. If several are free, choosing a stand-alone unit can give you a more consistent session.

Vehicle limits and connector type

Your car has its own maximum DC input, and it will never draw more than that, even if the charger is more powerful. For instance, if your car is limited to 100 kW, plugging into a 350 kW unit will not make it charge faster than 100 kW.

The connector standard, such as CCS or CHAdeMO, is also linked to hardware limits and local infrastructure. Always check your vehicle manual or in-car display for supported connectors and recommended power levels.

Converting charging speed into added range

Translating kW into kilometers or miles of range helps with real-world planning. A simple way is to think in terms of energy per distance. If your car averages 18 kWh per 100 km, then every 18 kWh added roughly equals 100 km of driving in similar conditions.

At a steady 90 kW, you receive about 90 kWh in one hour. In this example, 18 kWh (for 100 km) would take about 12 minutes. That does not account for slowing at higher battery levels, but it gives a quick mental estimate when planning a short stop.

Using DC fast charging without stressing the battery

Modern battery packs are managed carefully by the car, but your habits still matter. Using DC fast charging mainly for trips and relying on slower AC charging at home or work is a balanced approach for both convenience and long-term battery health.

When you do connect to high-power chargers, aim to arrive with a moderate battery level, unplug around the point where the rate has clearly started to fall, and avoid letting the pack sit at a very high level for long periods, especially in hot weather.

Planning smarter stops on longer journeys

Navigation systems and charging apps can show estimated charging times for different sites and power levels. These tools factor in your current battery level, route, and sometimes the weather. They are particularly useful in unfamiliar regions or when passing through areas with fewer stations.

If you are travelling with others, consider timing stops with meals, rest breaks or short walks. A well-chosen 20 to 30 minute stop in the fast part of your charging curve can be more efficient and more relaxing than waiting for the last few slow minutes to reach a very high battery level.

Safety and good habits at DC sites

High-power units move a lot of energy quickly, so basic safety matters. Always follow instructions on the screen, check that the connector is fully latched, and never use damaged cables or adapters that are not approved for your vehicle.

For home or private installations of DC equipment, work only with qualified electricians and follow local regulations closely. For most drivers, AC home charging is more suitable, and DC units are best left to professional settings such as public stations or commercial depots.

Once you understand how DC fast charging speeds really interact with temperature, battery level and charger power, planning longer routes becomes far more predictable. Instead of staring at the kW number, you can think in terms of minutes and realistic range added, which is what actually gets you to your destination.
