Type 2 charging explained: a simple guide for everyday EV drivers

For many new EV drivers in Europe and other regions, “Type 2” is one of the first technical terms they meet. It shows up on cables, public stations and car spec sheets, yet it is not always clear what it means in daily use.

This guide breaks Type 2 charging down into practical points: where you will see it, what speeds to expect, which cables you really need and how to use it safely at home and on the move.

What Type 2 actually is

Type 2 is a plug and socket design for AC charging that became the common standard across much of Europe and many other markets. It defines the shape of the connector and the pins used for power and communication.

Think of it as the AC equivalent of “USB” for phones. Different cars and stations can support different power levels, but if both sides have a Type 2 interface they can usually work together with the right cable.

Where you will meet Type 2 in real life

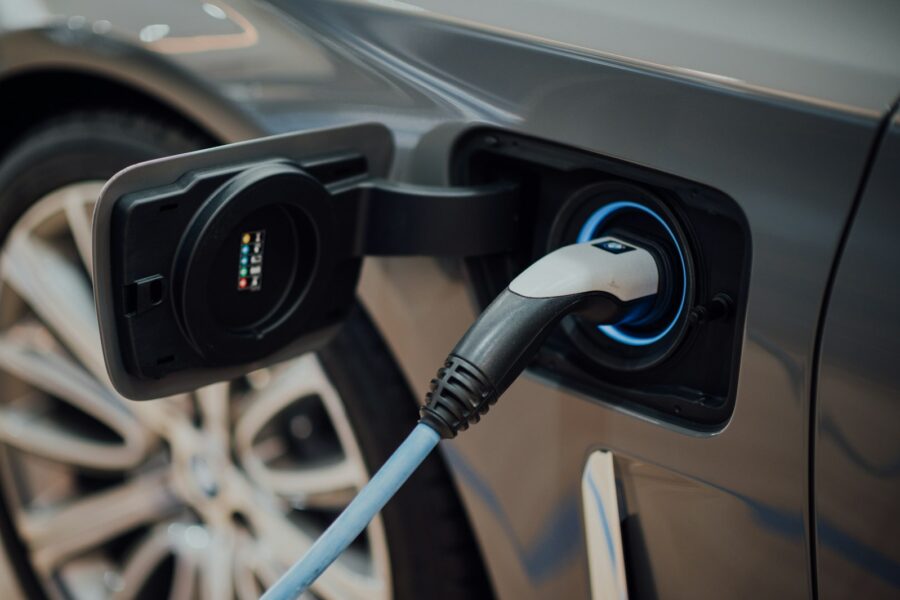

You are most likely to see Type 2 in three places: on your car’s AC inlet, on home or workplace wall units and at slower public posts in car parks, streets and shopping centres. Some stations have a fixed cable, others just a socket.

In many regions, rapid DC hubs use a different plug below the Type 2 inlet, so you might use Type 2 in town or at home, and a separate connector on longer trips. Checking your car’s handbook or charging flap labels helps you understand both.

Typical power levels and what they mean

Type 2 supports a range of power levels. How much you actually get depends on three parts working together: the station, the onboard AC charger in your car and the limits of the wiring in between.

At home, single‑phase setups are common. These usually provide something like 3.7 kW or 7.4 kW, which is suitable for overnight sessions. In workplaces or some public sites, three‑phase can allow higher levels such as 11 kW or 22 kW for faster top‑ups.

How to estimate real‑world charging time

You can estimate time by dividing the usable battery size by the expected power. For example, a 60 kWh pack on a 7.4 kW unit might take around 8 hours from low to full, while the same car on 11 kW would need roughly 5 to 6 hours.

In practice, you rarely start from empty, and charging usually slows a little near full. For daily use, it is more helpful to think in “driving days added overnight”, not in full zero‑to‑full sessions.

The cables you might need

Many cars ship with a Type 2 cable that has Type 2 plugs on both ends. This is used with public posts and some home units that offer only a socket. If you do not have one, you can usually buy it from the car maker or a reputable accessory supplier.

You may also have a portable unit with a domestic plug for low‑power top‑ups. This is useful as a backup but is slower and should not replace a properly installed wall unit if you charge regularly at home.

Safe Type 2 use at home

For frequent home use, a dedicated wall unit with a Type 2 output is the safest and most convenient option. It communicates with the car, manages power and is designed for regular high‑load use over many hours.

Installation should always be done by a qualified electrician who understands local rules and can assess your supply, wiring and protective devices. They can set appropriate limits so the system stays within safe boundaries for your property.

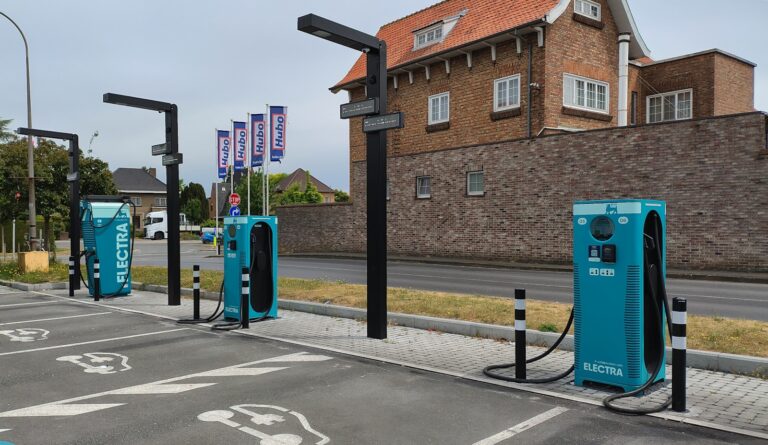

Good practice at public Type 2 stations

At public posts with only a socket, you will need to bring your own cable. Plug the car end in first so the cable is supported, then connect to the station and follow the instructions on screen or in the app to start the session.

When you finish, end the session in the app or on the station, wait for the plug to unlock, then disconnect from the station side before removing the plug from the car. Coil your cable loosely to avoid kinks and keep the pins dry and clean.

Making the most of Type 2 in daily life

Type 2 is best thought of as your steady, everyday solution. Use it at home overnight or at work during the day so most of your charging happens while the car is parked for longer periods anyway.

Rapid hubs are useful on long journeys, but building a routine around regular Type 2 sessions usually leads to less stress, fewer queues and more predictable range. Over time, you learn which spots near your home, office or gym are most reliable.

Checking compatibility for your car

Before buying any wall unit or cable, confirm that it suits your car’s inlet, onboard AC rating and your region’s supply. Car handbooks, official websites and dealer support pages usually give clear guidance.

If you are unsure, a qualified electrician or an installer with EV experience can review the options, suggest suitable power levels and help you choose hardware that will work well with your vehicle and meet local requirements.
