How to choose the right EV charging cable for home and on the road

For many new electric car owners, the charging cable feels like a minor detail compared with range or fast charging. In practice, the cable you pick can decide how flexible, safe and convenient your charging routine will be.

This guide explains the main types of EV charging cables, what the labels actually mean, and how to choose the right setup for home and travel without getting lost in technical jargon.

Know your connector: Type 1, Type 2 and CCS

The first step is to match the connector on the cable to the inlet on your car. In most of Europe and many other regions, Type 2 is now the standard plug for AC charging at home and in most street chargers. In North America, the common connector for AC charging is often called J1772.

Many newer cars use a combined plug for fast DC charging, such as CCS or similar regional standards. These fast chargers usually have a fixed cable already attached, so you do not need to buy one yourself. Your own portable cable is mainly for slower AC charging at home, work or destination chargers.

Mode 2 vs Mode 3 cables: what the labels really mean

Most drivers come across two practical types of cable. A Mode 2 cable usually has a household plug on one end (for example a Schuko or NEMA plug) and your car connector on the other, with a control box in the middle. This is often called the “granny charger” or portable charger.

A Mode 3 cable has your car connector on one end and a Type 2 (or regional equivalent) connector on the other. It is designed to plug into a dedicated charging station or wallbox that already provides the safety electronics, so the cable itself is simpler and is usually used with higher power.

Choosing a cable for home charging

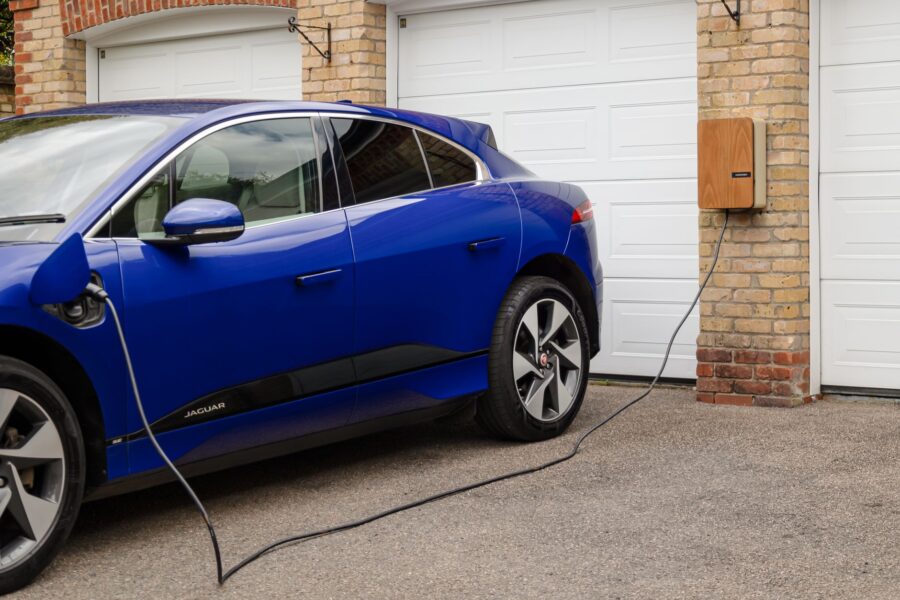

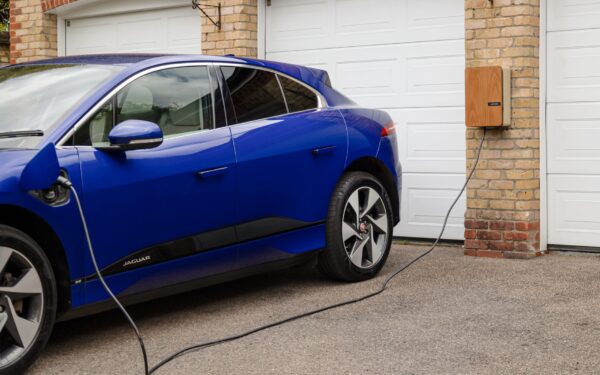

If you have, or plan to install, a dedicated wallbox at home, you will either choose a unit with a tethered cable (permanently attached) or with a socket that needs a separate Mode 3 cable. Tethered units are convenient, you simply unhook and plug in, but you are locked into that connector type and cable length.

A socketed wallbox plus a separate Mode 3 cable is more flexible. You can take the same cable with you to other chargers that use Type 2 sockets, and if standards change in the future you only need to swap the cable, not the entire charger. In both cases, installation should always be done by a qualified electrician and follow local regulations.

How thick, how long: current rating and cable length

Charging cables are rated by current, usually 16 A or 32 A for AC charging. A 32 A cable can support higher power than a 16 A cable at the same voltage. Buying a 32 A Mode 3 cable is a common choice, even if your car or wallbox currently charges at a lower rate, because it leaves room for future cars or upgrades.

Length is a balance between convenience and handling. Common lengths are 5 m and 7 m. A longer cable makes it easier to reach the car if you park in different positions, but it is heavier, more expensive and slightly harder to store. Before buying, check where the charge port sits on your car and where the wallbox or socket will be placed.

Portable “granny” cables: when and how to use them

Portable Mode 2 cables with a standard household plug are useful as a backup or for occasional use, for example when visiting family or staying in accommodation without dedicated EV charging. They charge more slowly than a wallbox, but can still add useful range overnight.

Because they draw significant power for long periods through a household outlet, they should be used with care. The socket should be in good condition, not shared with high power appliances through multi-plugs, and ideally checked by an electrician if you plan to use it regularly. In some regions, specific sockets or circuits are recommended for regular EV charging.

Weather resistance and safe handling

Most EV charging cables and connectors are designed to be used outdoors and are rated for rain and dust protection. However, the weakest point is often the socket or extension equipment. Avoid using domestic extension leads, cable reels or adapters, especially for high current charging, unless they are specifically rated and approved for EV use.

Inspect your cable occasionally for cuts, crushed sections or melted plastic at the plugs. If you notice damage, stop using it and replace it. Never tape over a damaged area or attempt home repairs. Store your cable in a clean, dry space and avoid leaving it in standing water or under heavy objects.

Travel cables: what to pack for road trips

For longer trips, your car will mostly use fast chargers with fixed cables along the main routes. A portable AC cable is still valuable for hotels, campsites and smaller destinations that only offer socketed chargers. In many parts of Europe, a Type 2 Mode 3 cable is enough for most of these situations.

Some drivers also carry a Mode 2 portable charger with a household plug as a backup. Before you travel, check local plug types, voltage and any charging restrictions. Charging apps and maps can show which locations require you to bring your own cable, which have tethered cables and which only offer standard sockets.

Compatibility, certification and where to buy

Always verify that any cable you buy matches your car’s inlet type and the chargers you plan to use. Follow the manufacturer’s recommendations in your vehicle manual. Look for cables that meet recognised standards in your region and come from reputable suppliers, not unbranded listings with unclear specifications.

If you are unsure, a qualified electrician or an EV-focused installer can help you match cable rating, wallbox capacity and your home electrical system. A little care at the start will give you a cable setup that is safe, easy to use and flexible enough for daily use and future vehicles.
