Understanding EV charging speeds: how slow, fast and rapid charging fit into everyday driving

One of the most confusing parts of driving an electric car is charging speed. You might see terms like slow, fast and rapid, plus different kW numbers that do not mean much at first glance. Yet once you understand how these fit together, planning daily use becomes much easier.

This guide breaks down charging speeds in simple terms and shows how to choose the right option for home, work and longer trips, without going deep into technical jargon.

What charging speed actually means

Charging speed is usually described in kilowatts (kW). In everyday terms, kW is how quickly energy can flow into your car. The higher the kW, the more kilometers or miles of range you add in a given time, as long as your car can accept that speed and the grid connection can supply it.

Energy stored in your car is measured in kilowatt-hours (kWh). If a car has a 60 kWh pack, that is the total energy it can store. A 7 kW home point, in theory, could add 7 kWh in one hour. In practice, charging is not perfectly linear, and the rate usually slows at higher states of charge.

The three main charging speed groups

Most infrastructure falls into three broad groups that are useful for planning your routine. Exact names can differ between countries, but the idea is similar.

• Slow AC charging:typically up to about 3.7 kW, often from a regular household socket or a low power dedicated unit.
• Fast AC charging:commonly 7 to 22 kW, usually from dedicated home or workplace units and many public points.
• Rapid or ultra-rapid DC charging:roughly 50 kW and above, found at highway locations and some urban sites.

AC means alternating current, which needs onboard electronics in the car to convert it. DC means direct current provided to the car at higher power, which is why rapid units are much larger and more expensive.

Slow charging: overnight topping up

Slow charging is often available almost everywhere there is a standard socket. It is convenient but limited in power, so it suits long parking times such as overnight or all day at a holiday rental. Depending on local regulations, using a regular socket for frequent car charging may be discouraged or restricted.

If you plan to rely on this at home, it is important to talk to a qualified electrician. They can check that the wiring and outlet are suitable for extended high loads and may recommend a dedicated circuit or an upgraded solution.

Fast AC charging: the everyday workhorse

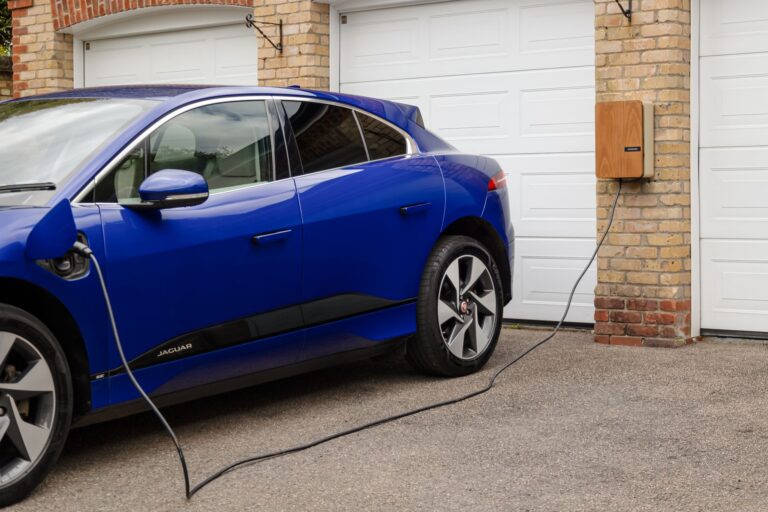

For many drivers, a dedicated 7 to 11 kW home point is the most useful option. It usually provides a full charge from low to high overnight, and shorter top ups in a few hours. The exact time depends on your car’s size and its onboard AC limit.

Some cars can use higher 22 kW AC where available, typically with three-phase power. Others are limited to 7 or 11 kW even if the post can provide more. Checking your car’s AC charging limit helps you understand what you will actually get from each site.

Rapid DC charging: for road trips and quick stops

Rapid DC units are designed to add a lot of range in a short stop. Common power levels include 50 kW, 100 to 150 kW, and higher figures at some newer sites. Many cars see the highest speed when the pack is at a low to medium level, then the rate gradually reduces as it fills.

Because of this, the first 20 to 60 minutes at a rapid site often gives the biggest benefit. Drivers on long journeys often choose to charge from a lower level up to a moderate level, then continue driving, instead of waiting for a very high state of charge.

Why your car does not always hit the advertised kW

Charging speed is limited by several factors that all have to line up. First, your car has maximum limits for AC and DC charging. If a post can provide 150 kW but your car’s DC limit is 100 kW, you will not go beyond 100 kW in normal conditions.

Second, the grid connection and the site itself can share power between multiple vehicles. If several cars are charging at once, each one may receive a lower rate than the maximum signposted figure, depending on the system design.

Third, conditions such as temperature and current state of charge influence the curve. Many cars reduce power at very low or very high levels or in very cold or hot weather. Preconditioning features and route planning tools in the car can help manage this on long drives.

Matching charging speed to real life needs

To choose the right approach, start with your typical daily distance. Many people drive far less than the full range of a modern electric car in a day. In that case, regular overnight charging at home or work, even at modest power, can be more than enough.

You can think of charging more like topping up a phone: frequent smaller sessions instead of waiting to go from nearly empty to completely full. Rapid DC charging then becomes an occasional tool for long trips or unexpected detours.

Planning home charging upgrades

If you are considering a home installation, speak with a qualified electrician who has experience with EV connections. They can check your household supply, discuss local regulations, and advise whether a single-phase or three-phase solution is available and appropriate.

It can also be useful to consider features such as load management, smart scheduling, and integration with time-of-use tariffs. These extras do not change the peak kW, but they can help you manage costs and reduce strain on your home wiring and local grid.

Using public charging apps to choose the right speed

Charging apps and in-car navigation systems can filter locations by power level. When planning a trip, look for sites with rapid DC along your route for quick top ups, and fast AC near your destination if the car will be parked for several hours.

Once you know the rough kW figures your car can use, the numbers in the app become clearer. You will quickly learn which speed matters for motorway stops, weekend shopping, or an overnight hotel stay, and you can avoid waiting longer than necessary.

Key takeaways for stress-free charging

Understanding charging speeds is less about memorising numbers and more about matching power levels with how long your car will be parked. Slow and fast AC are ideal for routine daily use and parking at home or work, while rapid DC is best reserved for journeys where time on the road matters.

By knowing your car’s limits, your typical daily distance, and the types of sites available nearby, you can build simple habits that keep you charged without constant planning or worry.
