How to understand EV charging speed without getting lost in kilowatts

New EV owners quickly discover that “fast” and “slow” are not very precise words when it comes to topping up the battery. You see numbers like 7 kW, 50 kW or 150 kW, plus different connector types and tariffs that change by time or energy.

With a few simple ideas you can read spec sheets, public charger maps and on-screen estimates with confidence, and choose options that fit your daily routine and budget.

Power, energy and why kW is not the whole story

Two units matter most. Kilowatt-hour (kWh) is how much energy the battery can store, similar to the size of a fuel tank. Kilowatt (kW) is power, similar to how quickly fuel flows through the pump.

In simple terms, if a car accepts 50 kW from a charger for one full hour, it will add roughly 50 kWh to the battery. That is an ideal case, because real sessions slow down near a high state of charge and with different temperatures.

Types of charging: AC at home, DC on the road

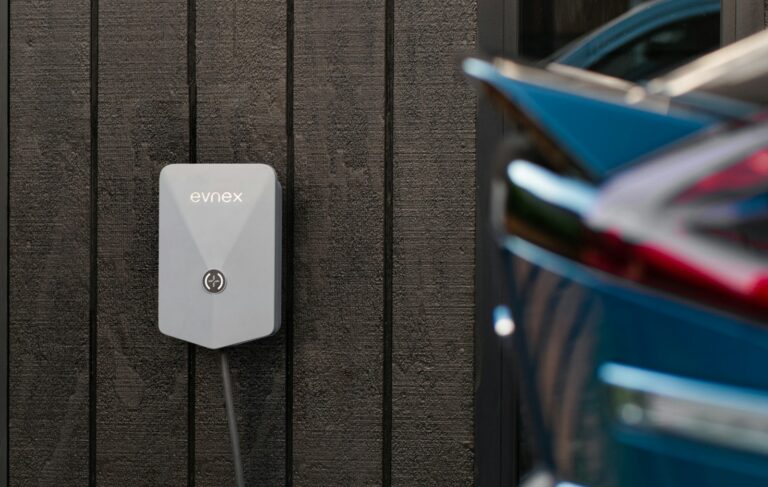

Most home and workplace units use AC (alternating current). The car’s onboard charger converts AC to DC for the battery, so the car itself sets a hard limit. If your vehicle has an 11 kW onboard charger, even a 22 kW AC post will still give you a maximum of about 11 kW.

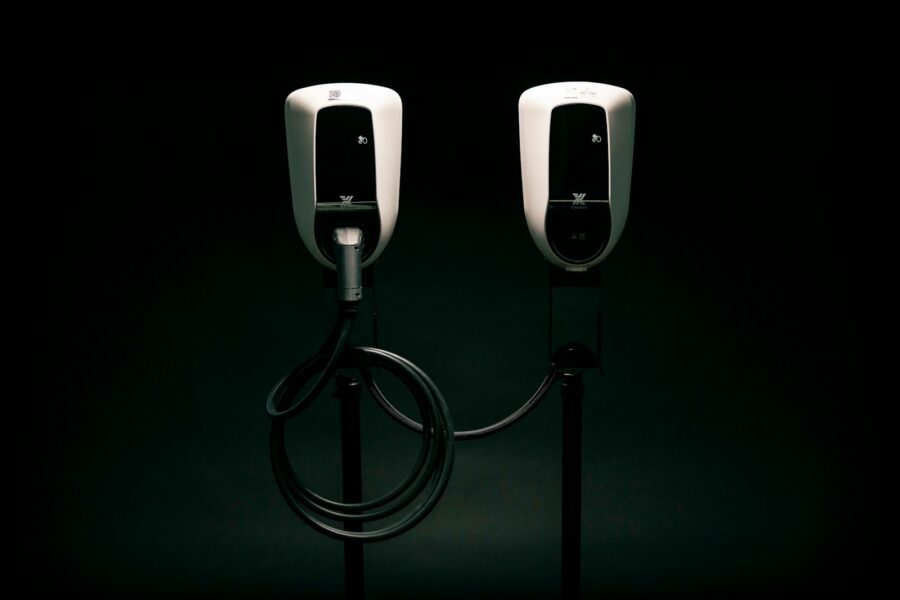

Public highway units usually use DC (direct current). Here the power electronics are in the charging cabinet, so rates like 50 kW, 120 kW or 250 kW are listed on the post. In practice, your car’s peak DC capability and battery conditions decide how close you get to those numbers.

Why your peak charging figure is only part of the picture

Manufacturers often highlight the maximum DC power, for example “up to 120 kW”. This can be helpful for comparing cars, but it only applies in a narrow window, often when the battery is relatively empty and at a good temperature.

Each vehicle has a “charging curve”, which shows power against state of charge. Typically, power rises quickly from a low level, holds near the peak for a while, then drops as the battery fills. Two cars with the same headline peak can have very different average speeds over a full session.

How to estimate real-world session time

Instead of thinking from 0 to 100 percent, it is more realistic to look at the band you usually use, for example 10 to 80 percent. Many car manuals or independent tests share approximate times for this range on DC hardware.

If no figures are available, a rough approach is to take about 60 to 70 percent of the published peak as an average over that range. For a 100 kW peak car, that suggests roughly 60 to 70 kW average on a suitable DC post in good conditions.

State of charge, battery temperature and seasons

Battery chemistry prefers a moderate state of charge for high power. That is why fast units are most effective when you arrive with a low percentage and unplug near 70 or 80 percent for trips that allow it. The last part to full takes more time and gives less extra distance per minute.

Temperature also matters. In cold weather, many models limit power to protect the cells. Some cars warm the pack on the way to a DC site, especially if you set the charger as a destination in the navigation system. On hot days, you may see limits if the pack is already stressed from long use.

Connector types and what they mean for speed

AC posts are often labelled by connector shape, such as Type 2. Here the key factor for speed is the lower of the post output and the vehicle’s onboard charger rating. A 7 kW home wall unit with a 7 kW car will usually add energy at a steady and predictable rate.

DC hardware is identified by standards like CCS or CHAdeMO, plus a maximum kW rating. If your car only accepts 50 kW, there is no benefit in paying more for a 150 kW stand in terms of speed, although the busier site might still suit your route or facilities.

Time-based vs energy-based pricing

Some providers bill by kWh, others by minute, and some add session fees or idle charges. With energy-based pricing, the unit cost per kWh is clear. With time-based pricing, slower sessions become more expensive, especially in the upper part of the battery where power tapers.

A practical approach is to unplug once the charging curve has slowed significantly, if your route allows it. This often gives the best balance between time spent, money paid and energy gained, especially on high power networks that bill per minute.

Simple rules of thumb for everyday use

You do not need to memorise curves or formulas. A few habits already make life easier. Use AC where you park for hours, such as at home or work, and keep DC sessions for longer trips or rare urgent top ups.

Plan stops when the battery will be at a moderate level, avoid chasing 100 percent on rapid equipment unless you must, and remember that advertised kW is a ceiling, not a guarantee. With this mindset, the many different posts and numbers become easier to navigate.
