How onboard chargers shape everyday EV use at home and on the road

Most electric car conversations focus on rapid public plugs and how fast you can top up on a long trip. Yet the part that sets the pace for almost every overnight plug-in at home is hidden under the floor or under the bonnet: the onboard charger.

Understanding what this component does, and its limits, helps you plan home installations, compare models more fairly and avoid slow surprises when you arrive at a destination plug.

What an onboard charger actually does

The electricity that comes from a typical house outlet or wallbox is alternating current (AC). Your car’s motor and traction pack work with direct current (DC), so something inside the vehicle must convert one to the other.

That job belongs to the onboard charger. It takes AC from the cable, converts it to DC and feeds it into the pack at a controlled rate. Its maximum power rating, often 7 kW, 11 kW or 22 kW in Europe and similar values elsewhere, acts as a bottleneck for AC top-ups, even if the wallbox could provide more.

Onboard charger power ratings explained

When you see a brochure mention “11 kW AC”, that number usually refers to the onboard charger’s peak capability on three-phase AC. For single-phase supply, common in many homes, the same car may be limited to around 7 kW or less.

The real-world result is simple: higher onboard charger power means faster AC top-ups, as long as your supply and cable can support it. If any one of those three elements is lower, the whole setup slows to match the weakest link.

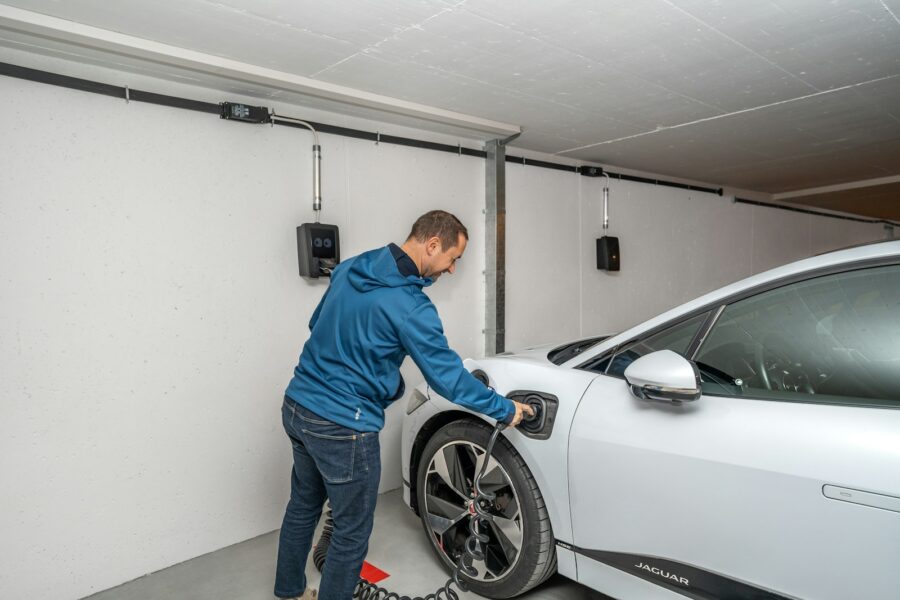

How this affects home wallbox choices

Many new owners instinctively look for the highest power home wallbox they can install. This can be a waste of money if the car’s onboard unit cannot use that extra capacity, or if the property only has a modest electrical supply.

Before ordering hardware, check three things: your car’s maximum AC acceptance, the number of phases and amperage available at your property and any local regulations or utility rules. Matching these gives you a balanced, cost effective home installation.

Examples of typical home charging times

As a rough guide, a 7 kW AC setup adds around 30 to 40 kilometres of driving per hour for many modern cars, depending on efficiency and driving style. An 11 kW capable car on suitable three-phase supply can add roughly half as much time for the same distance gain.

These are only ballpark figures, but they highlight how moving from 7 kW to 11 kW can cut overnight top-up durations significantly for larger packs. For smaller city models, a solid 7 kW or even lower power may be entirely adequate.

Single-phase, three-phase and regional differences

Not every country or property uses the same household electricity setup. Many European homes can access three-phase feeds, while a lot of North American houses use split phase arrangements with different voltage and current limits.

This means that the same vehicle may deliver 11 kW AC in one region and only about half of that in another, purely due to the available supply. When comparing specifications online, always check which region and grid type the numbers refer to.

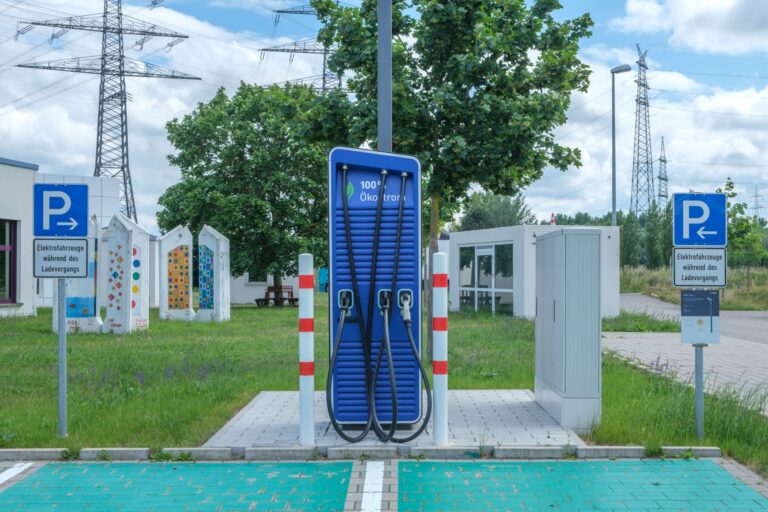

Onboard chargers and public AC posts

Public infrastructure often mixes rapid DC stalls with slower AC posts. Those AC posts are particularly common in city centres, workplace parking and hotels, and are typically rated from 7 kW up to 22 kW or more.

If your onboard unit is limited to 7 kW, a 22 kW post will not give you 22 kW. The car decides the intake, so you will see the same rate you would get from a properly installed 7 kW home wallbox, even though the street post could deliver more.

Heat, efficiency and charging curves

Inside the car, the conversion process creates heat and electrical losses. Modern designs try to keep efficiency high, often above 90 percent, but some loss is unavoidable and shows up as extra warmth in the power electronics.

To protect components and the pack, many cars reduce AC intake slightly as they approach a high state of charge. This is why the last 10 to 20 percent of a full top-up takes disproportionately longer, even on AC, although the effect is usually milder than on DC rapid sessions.

Future trends for onboard chargers

Manufacturers are gradually introducing more integrated power electronics, where the device that drives the motor at speed can also help with AC conversion. This can reduce cost and space, and may support higher AC levels in future generations.

Another emerging direction is bi-directional capability. In suitable markets, some onboard chargers can not only take power in but also send it back out to a home or the local grid. Availability, regulations and compatibility vary widely, so owners should check local details carefully.

Practical tips for everyday owners

For most households, the priority should be a safe, correctly installed wallbox that matches both the car and the property, rather than chasing the highest possible number on paper. Good cable management and convenient placement often matter more than an extra kilowatt or two.

When booking hotels or workplace parking, look beyond the number of plugs and check the AC power available. If your onboard charger can use 11 kW or more, choosing the higher power posts where possible can make a noticeable difference to how much driving you recover while parked.

By paying attention to the onboard charger, not just the public rapid network, you can plan smarter, spend less on unnecessary hardware and make day to day electric motoring smoother.
